Hybrid Battery Repair Case Studies
Real jobs from DFW Hybrid Battery — the codes, the testing, and what actually fixed the car
✓ Diagnosis first ✓ Honest repair options ✓ No unnecessary parts
A warning light or trouble code rarely tells the whole story. These case studies show how we test before recommending anything — and how often the answer is a repair, a charge or a small fix instead of a new battery. Every case is a real vehicle we worked on.

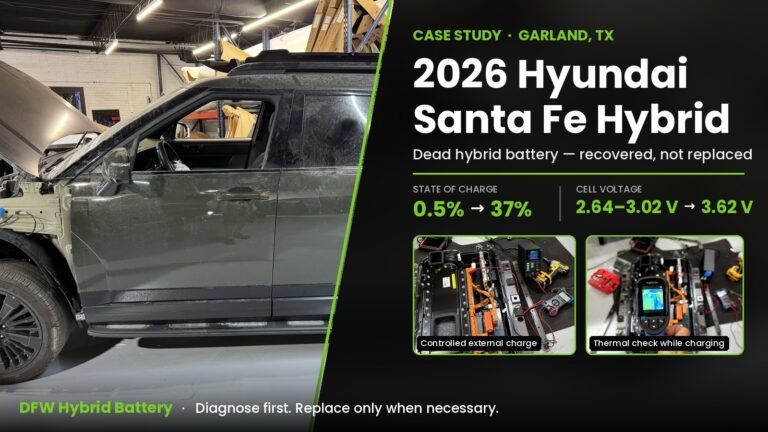

Battery recovery · 2026 Santa Fe Hybrid · Garland, TX
2026 Hyundai Santa Fe Hybrid Battery Recovery Case Study (Garland, TX)
Codes / symptom: No READY after engine repair, battery at 0.5% SOC
Result: Controlled external charge with temperature monitoring. READY on the first try, cells balanced at 3.62 V, EV mode and road test passed — no new battery.

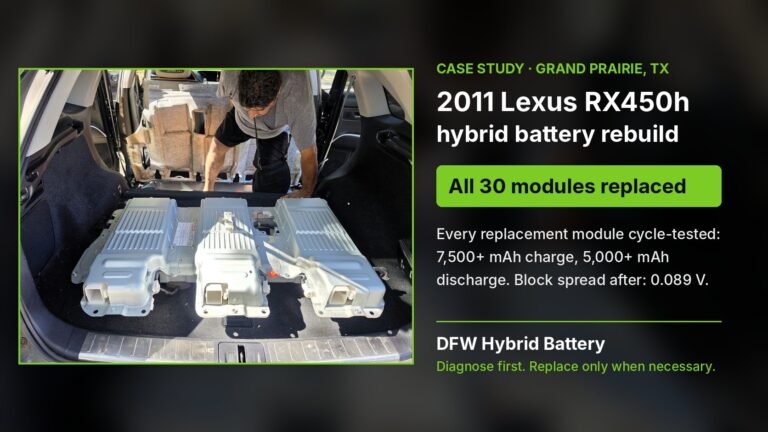

Battery rebuild · 2011 RX450h · Grand Prairie, TX
2011 Lexus RX450h Hybrid Battery Rebuild Case Study (Grand Prairie, TX)
Codes / symptom: Check Hybrid System warning, weak battery modules
Result: After the Battery Health Report, the owner chose a full rebuild: all 30 modules replaced with cycle-tested modules. Final block spread 0.089 V.
Honest diagnostics · 2008 Prius · Fort Worth, TX
2008 Toyota Prius Won’t Start: P0AA6 Isolation Fault Case Study (Fort Worth, TX)
Codes / symptom: P0AA6, P0A08, P0A09, C1241, C1259, C1310
Result: Would not go READY and had been blamed on the hybrid battery. Diagnosis showed a high-voltage isolation fault — no battery replacement recommended.
2004 Toyota Prius (Gen 2) · Arlington, TX
2004 Toyota Prius Won’t Go Into READY Mode: P0AA1 & P0AA4 Case Study (Arlington, TX)
Codes / symptom: P0AA1, P0AA4, C1259, C1310
Result: Would not go into READY after battery reconditioning. The cause was a loose connector pin — no PRA, ECU or modules replaced.
2021 Toyota Prius · Arlington, TX
2021 Toyota Prius Hybrid Battery Charging – Arlington, TX
Codes / symptom: No-start, battery at about 3% charge
Result: Lithium-ion pack charged externally from about 129 V to 170 V. READY restored — no replacement needed.
P1B70
2015 Hyundai Sonata Hybrid
P1B70 Did Not Mean a Bad Hybrid Battery: 2015 Hyundai Sonata Hybrid BMS Case Study
Codes / symptom: P1B70
Result: The hybrid battery itself was fine — a failed battery management system (BMS) was the real cause.
2006 Lexus RX 400h
2006 Lexus RX400h Hybrid Battery Rebuild & Water Damage Repair
Codes / symptom: P3030, P3000
Result: Severe battery failure with water damage. Full 30-module rebuild, testing and road test — back on the road.
2017 Hyundai Sonata Hybrid
2017 Hyundai Sonata Hybrid Battery No-Start Diagnosis & Repair
Codes / symptom: P1B77, no-start
Result: Step-by-step diagnosis found the fault inside the high-voltage battery pack, followed by the repair.
What These Jobs Have in Common
Codes are a starting point, not a verdict
P0AA1, P1B70 or P3000 can look like “replace the battery.” Testing showed a loose pin, a failed BMS or a drained pack instead. Look up a code in our hybrid battery error code guides.
The right fix for the car
Sometimes it is an external pack charge, sometimes module repair or a full rebuild, and sometimes replacement. On-site diagnostics are $150 in our service area and 100% credited toward the repair.
Hear it from customers
Read what hybrid owners say on our customer reviews page, or see hybrid battery prices and the vehicles we service.
